FR8AT-500
The Shengrui FR8AT-500 Longitudinal Automatic Transmission has a maximum input torque of 500 N.m, a maximum input speed of 6000 RPM, and a gear ratio spread of 7.8. It supports both two-wheel drive and four-wheel drive layouts, and can be expanded to P2 hybrid variant FR8HT-500.(The transmission can be matched with gasoline and diesel engines; dual overdrive gears are adopted to optimize fuel economy; the hybrid derivative FR8HT-500 is integrated with high-voltage motor modules for new energy vehicles.)
In the detailed model name, “FR” stands for Front-engine Rear-wheel drive layout. The number “8” represents 8 forward speed gears. “AT” means Automatic Transmission. The suffix “500” indicates the maximum rated input torque of 500 N.m. Derivative suffix “HT” denotes P2 hybrid variant with integrated high-voltage motor module.
As part of EMAC, DuraMac provides a complete power system integrating DCEC engine, Fast-Eaton clutch, DaTong-Gear gearbox, Dongfeng-DANA axle and Komman air suspension. With the future trend of automotive electrification, Duramac is also actively developing in the field of electric vehicle power systems.
The company provides customers with full life cycle services, from design to power system supply, installation and commissioning, to after-sales service training and spare parts supply, as well as troubleshooting and overhaul technical support. This full range of services ensures that customer equipment maintains high reliability and long-term operating efficiency during use.
Advantages of FR8AT-500 Automatic Transmission
-
Dual pump structure of electronic oil pump plus mechanical oil pump, equipped with 4 planetary gear sets, 4 clutches, 1 brake and electronic parking mechanism.
-
Combined forced lubrication and gear splash lubrication system.
-
High-efficiency bearings and friction plates reduce drag loss, dual pumps cut hydraulic power loss, with peak efficiency up to 97%.
-
Small gear ratio steps, flexible shift logic, smooth shifting and outstanding fuel saving performance.
-
Low-leakage high-efficiency solenoid valves, wide-angle torque converter and high-precision C/B pressure control for superior ride comfort.
-
Wide gear ratio spread of 7.8, standard electronic shift, optional mechanical shift and auto start-stop function.
-
Modular platform design, expandable to 4WD and P2 hybrid, with customizable front and rear housings on shared main housing.
Technical Specifications
| Model: | FR8AT-500 |
| Gear Position: | 8 forward gears + 1 reverse gear |
| Drive Layout: | Front-engine Rear-wheel Drive, 2WD / 4WD available |
| Auto Start-Stop Function: | Optional |
| Dimension: | 683mm*292mm*421mm |
| Gear Ratio Spread: | 7.8 |
| Max Input Torque: | 500 N.m |
| Max Input Speed: | 6000 rpm |
| Lead Time: | 15 – 30 Working Days |
| Payment Terms: | T/T ,L/C |
HW21712XSJ
The Datong HW21712XSJ Heavy Manual No-Sync Gearbox has a torque of 1900 N.m, a gear ratio range of 15.011 – 1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 915 mm, and a weight of 379 kg.
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
FR8AT-500 Automatic transmission Main Performance Parameters |
|||
| Model | FR8AT-500 | Gear Layout | 8 forward gears + 1 reverse gear |
| Drive Form | Front-engine Rear-wheel Drive, 2WD / 4WD | Compatible Engine | Gasoline / Diesel |
| Shift Operation | Electronic Shift / Cable Shift | Auto Start-Stop Function | Optional |
| Overall Dimension | 683mm*292mm*421mm | Gear Ratio Spread | 7.8 |
| Max Input Torque | 500 N.m | Max Input Speed | D1-D6: 6000 rpm D7: 4500 rpm D8: 3500 rpm R: 2500 rpm (3500 rpm sustainable for 5s) |
| Operating Temperature | Normal: 80–120°C Extreme: -40°C ~ 150°C |
Max Climbing Gradient | 40% (60% requires extra oil volume) |

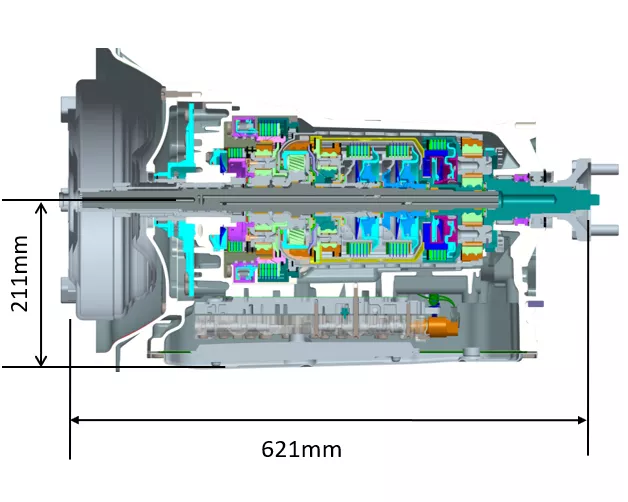

| Overall Length | 621 ± 1 mm | Distance from Input Shaft to Oil Pan | 211 ± 1 mm |
| Dry Weight | ≤ 95 Kg | Max Output Shaft Torque | 2500 N·m |
| Transmission Efficiency | High & medium load: 95%, average efficiency: 92% | ||
| ——END—— | |||
The following is the numbering rules of FR8AT Automatic transmission.
|
|
coming soon
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
